Mainboard MSI Z790 GAMING PLUS WIFI DDR5

THÔNG SỐ SẢN PHẨM:

[Mainboard Z790 GAMING PLUS WIFI D5:]
- Sản phẩm: Bo mạch chủ
- Tên Hãng: MSI
- Model: Z790 GAMING PLUS WIFI
- CPU hỗ trợ: Intel
- Chipset: INTEL Z790
- Kích cỡ: ATX: 243.84mmx304.8mm
- RAM hỗ trợ:
4x DDR5, Maximum Memory Capacity 256GB
Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

- Khe cắm mở rộng:
3x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

- Ổ cứng hỗ trợ:
4x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
6x SATA 6G

- Cổng kết nối (Internal):
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
1x USB4 card connector (JTBT_U4_1, supports RTD3)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports

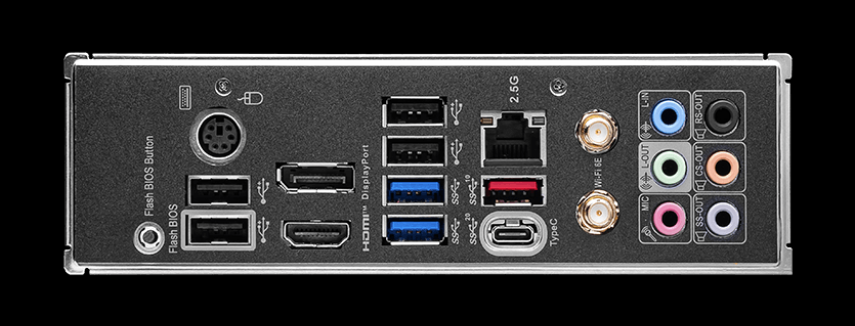

- BACK PANEL:
+ Keyboard / Mouse
+ DisplayPort
+ USB 2.0
+ 2.5G LAN Port
+ Wi-Fi / Bluetooth Antenna
+ Audio Connectors
+ Flash BIOS Button
+ USB 2.0
+ HDMI™ 2.1 Port
+ USB 3.2 Gen 1 5Gbps Type-A
+ USB 3.2 Gen 2x2 20Gbps Type-C
+ USB 3.2 Gen 2 10Gbps Type-A

- LAN / Wireless:
+ Intel® Wi-Fi 6E
+ The Wireless module is pre-installed in the M.2 (Key-E) slot
+ Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
+ Supports 802.11 a/ b/ g/ n/ ac/ ax
+ Supports Bluetooth® 5.3, FIPS, FISMA
